Logical Venn Diagrams
About This Cheat Sheet

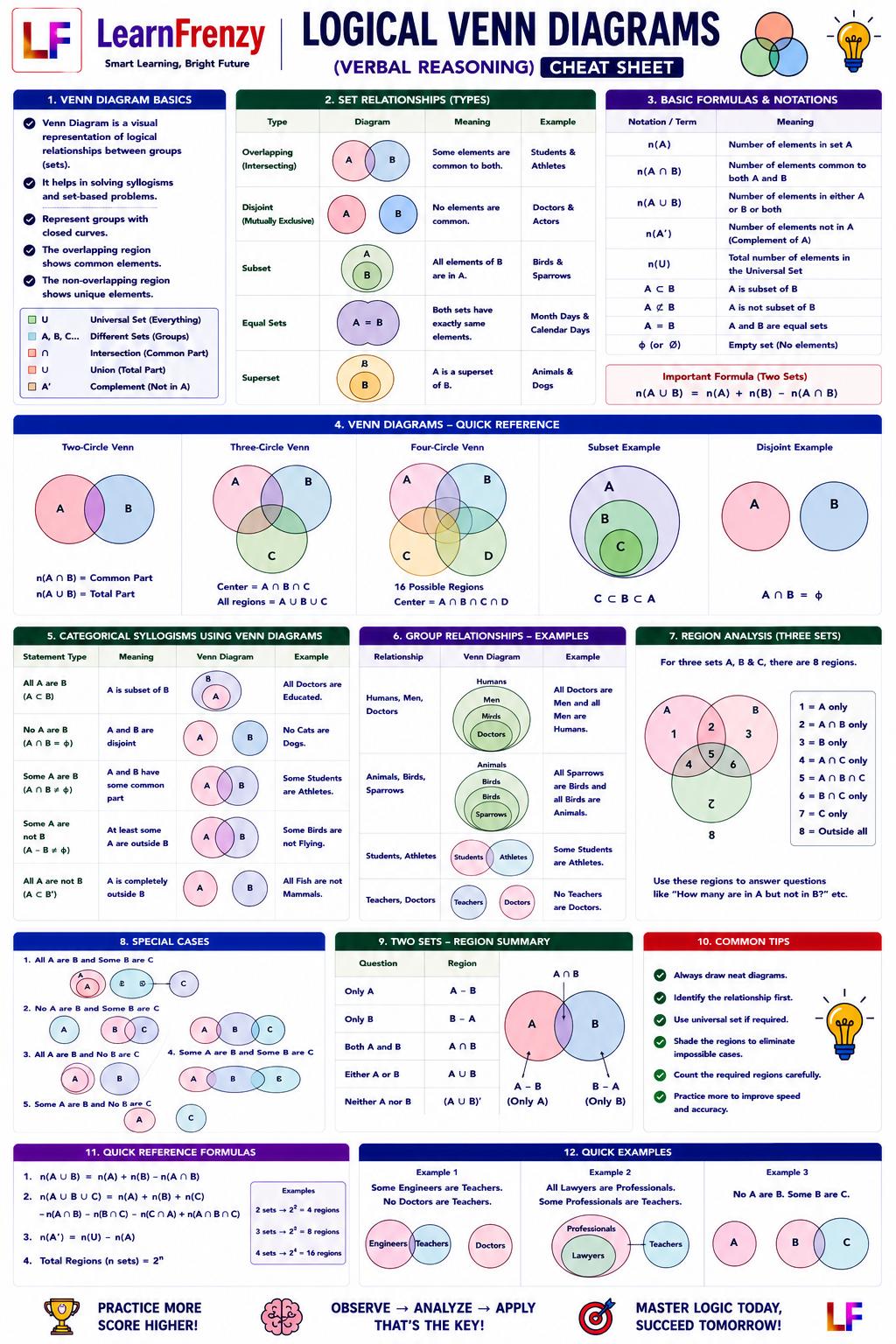

Your complete guide to Logical Venn Diagrams for competitive exams. This cheat sheet helps you visualize relationships between different groups and solve syllogism questions using Venn diagrams.
📊 Venn Diagram Basics
- Universal Set
- Subsets & Equal Sets
- Union & Intersection
- Complement & Difference
- Disjoint & Overlapping
- Venn Diagram Regions
🔄 Set Relationships
- Overlapping Sets
- Subset Relationships
- Disjoint Sets
- Equal Sets
- Hierarchical Groups
- Mutually Exclusive Groups
⭕ Types of Venn Diagrams
- Two Circle Diagrams
- Three Circle Diagrams
- Four Circle Diagrams
- Complex Diagrams
- Multiple Set Diagrams
- Relationship Mapping
🧩 Problem Types
- Category & Subcategory
- Professions & Attributes
- Humans, Animals & Plants
- Overlapping Groups
- Mutually Exclusive Groups
- Hierarchical Groups
🎯 Syllogism with Venn
- Categorical Syllogisms
- All, Some, No Statements
- Identifying Correct Diagrams
- Finding Elements in Regions
- Relationship Determination
- Best Representation
📚 Exam Categories
- SSC & Banking
- Railways & UPSC
- CAT & MBA Entrance
- Defence & Insurance
- Placement Tests
- Other Competitive Exams
🔵 Disjoint
No Overlap
Separate Sets🟣 Overlapping
Common Area
Some Elements Share🟢 Subset
Inside Another
All Elements Included🔴 Equal
Completely Overlap
Same Elements🔄 Venn Diagram Relationships
🔵 Disjoint
No common elements
🟣 Overlapping
Some common elements
🟢 Subset
All elements in another
🔴 Equal
Completely overlap
📝 Syllogism Examples
🎯 Quick Examples
⭕ Three Circle Venn Diagram
A Only
In A but not B or C
A ∩ B
In both A and B only
A ∩ B ∩ C
In all three sets
📋 Quick Reference: Venn Diagram Regions
🔵 Two Circles
- A Only: In A not B
- B Only: In B not A
- Intersection: In both
- Neither: Outside both
🟣 Three Circles
- Only A, Only B, Only C
- A∩B, B∩C, A∩C
- A∩B∩C: All three
- Outside: All three
🔄 Key Relationships
- All A are B: A inside B
- Some A are B: Overlapping
- No A are B: Disjoint
- Some A are not B: Overlapping with extra
🎯 How to Solve Venn Diagram Questions Quickly
The Golden Rule: A Venn diagram is correct only if it accurately represents all possible relationships between the given groups. If there's any overlap, it must exist in both sets.
Step-by-Step Approach:
- Step 1: Identify all the groups or sets mentioned
- Step 2: Determine the relationship between each pair
- Step 3: Draw the Venn diagram based on these relationships
- Step 4: Place elements in the correct regions
- Step 5: Verify the diagram against all statements
Common Mistakes to Avoid:
- ❌ Drawing overlapping circles when sets are disjoint
- ❌ Forgetting that "All A are B" means A is a subset of B
- ❌ Confusing union (OR) with intersection (AND)
- ❌ Missing the universal set in complex problems
Proven Strategy: The "Relationship First" technique – before drawing any diagram, identify the relationship between each pair of sets. Is one a subset of the other? Are they overlapping? Are they completely separate? Then draw accordingly.
Memory Trick: Remember these common Venn diagram relationships:
- 🔵 Disjoint: Two separate circles (no overlap)
- 🟣 Overlapping: Two circles with common area
- 🟢 Subset: One circle completely inside another
- 🔴 Equal: Two circles that completely overlap
